PRO-STREET throttle body IDF type 2 50mm
In Stock
Product Code: 800-750
$649.00
inc GST for Australian CustomersAUD $590.00 (ex GST)
for International Customers
inc GST for Australian CustomersAUD $590.00 (ex GST)
for International Customers
293.79
GBP353.43
EUR652.02
NZD57,950.10
JPY368.39
USD
GBP353.43
EUR652.02
NZD57,950.10
JPY368.39
USD
approximate only
Options:
*** Now Manufactured From Billet not Cast **
Type 2 IDF with reverse mount injector for inboard injector mounting for improved throttle response and idle control on V8 applications.
Details
QUALITY ASSURANCE:
Every single throttle bore and throttle plate are measured and matched as a pair to ensure the most perfect throttle fit and consistency across every EFI Hardware throttle body.
BOOSTED VS NATURALLY ASPIRATED:
We have lip seals behind the throttle shaft bearings to stop grease from being sucked out of the bearings under high intake runner vacuum. These are turned around on boosted applications so there is no boost leakage and also stops the bearing grease getting evacuated from the throttle shaft the bearings.
We ask you if you are going to run your engine Boosted, or Naturally Aspirated so we can install the Lip Seals in your throttle bodies in the appropriate way to suit your application.

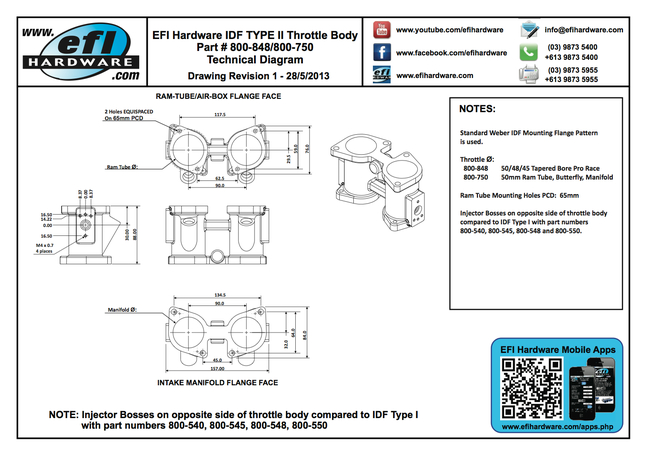

THROTTLE BODY TECHNICAL DRAWING
HP RATINGS
HP/kW Ratings vary from engine to engine. The power ratings given here are only a guide, and are not absolute power ratings. Engine power is determined by intake, exhaust, cylinder head design, camshaft design, compression ratio, fuel type and quality and many other factors.
50mm - 72HP/54KW* per throttle - with the tapered bore giving a potential for 5% above this figure.
*This number is a guide only and should be used in conjunction with real-world experience.
EFI HARDWRE PRODUCE 6° THROTTLE PLATES
In the past, 12° throttle plates were the industry standard. The problem with 12° throttle plates, is that as the plates are moved off the closed position, the change in airflow is huge. It makes it very difficult to drive smoothly at lower throttle openings.
At EFI Hardware, we only use 6° throttle plates. This improves off idle and cruise driveability making your vehicle far more enjoyable to drive.
PROFESSIONAL GRADE MANUFACTURE
Manufactured from 6061 T6 Aluminium Billet CNC machined.
The butterflies are measured for each bore & precision machined to a 0.0005"" tolerance.
Butterflies are secured to centreless ground brass shafts with split screws to ensure reliability and serviceability.
All are fitted with bearings rather than bushes to eliminate axial shaft movement.
Low stiction bearings for sharp throttle response.
We now recommend
and use SKF bearings.
