HomeFuel System PartsFuel Injectors, Bosch Fuel injectorsMotorsport EV14 Injectors

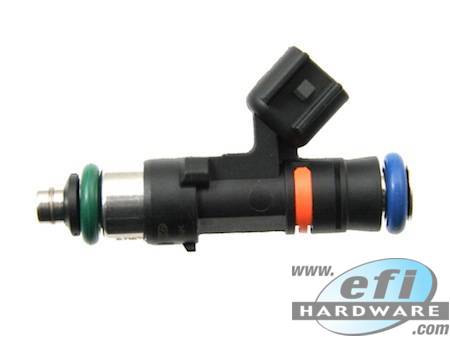

injector EV14 52 lb/hr 550cc motorsport 3/4 Height
Product Code: 851-550
inc GST for Australian CustomersAUD $98.00 (ex GST)
for International Customers
GBP58.74
EUR108.36
NZD9,606.54
JPY61.13
USD
Options:

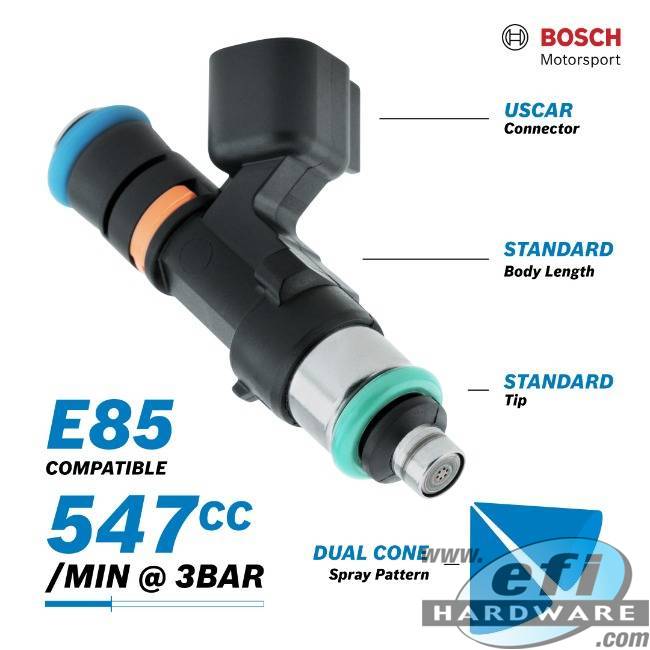

THIS INJECTOR IS E85 COMPATIBLE.
89 HP Normally Aspirated - estimated (pump petrol)
74 HP Turbo up to 1 Bar Boost - estimated (pump petrol)
69 HP Turbo up to 2 Bar Boost - estimated (pump petrol)
> Flow Rate - 547cc/min @3BAR (53lb/hr)
> ORings - 14mm Top / 14mm Bottom
> Electrical Plug - USCAR (Oval)
> Impedance - High
> Oring Top to Bottom / Center to Center without Height Adapter - 53.0mm
> Oring Top to Bottom / Center to Center with 11mm Top Oring Height Adapter - 64.5mm
> Oring Top to Bottom / Center to Center with 11mm Nissan Special Top Oring Height Adapter - 64.5mm
> Oring Top to Bottom / Center to Center with 14mm Top Oring Height Adapter - 64.5mm
> Manufacturer - Bosch PN: 0 280 158 117, 0280158117, 0 28851 23324 8, 028851233248
These are 3/4 height so may require height adapter. These use a USCAR type plug P/N H-INJP5 or Bosch converter adapter P/N 852-LOOM3.
NOTE: We can modify these Injectors to suit a fuel rail that requires fuel injectors with an 11mm top oring at a cost of $10 excluding GST per injector.
INJECTOR CONNECTORS TO SUIT:
Replacement injectors are only as good as the wiring, pins and plugs that supply current
and voltage to them.
This is an ideal time to check your injector plugs and pins for signs of pin corrosion, pins
splayed open and crumbling plastic connectors.
If in doubt, it can be cheap insurance to replace your injector connectors with brand new items to ensure positive electrical connections.
PART NUMBER | DESCRIPTION | IMAGE |
H-INJP5 | injector plug kit for uscar injector | |
852-LOOM1 | USCAR Injector to Bosch Loom Wired Adapter | |
852-LOOM3 | USCAR Injector to Bosch Loom Hard Adapter | |
852-LOOM5 | USCAR Injector to Nissan Loom Wired Adapter | |
852-LOOM9 | USCAR Injector to Denso Loom Wired Adapter | |
852-LOOM10 | USCAR Injector to Denso Loom Hard Adapter | |
852-LOOM15 | USCAR Injector to Honda / Keihin Loom Hard Adapter | |
852-LOOM16 | USCAR Injector to Honda / Keihin Wired Adapter |
