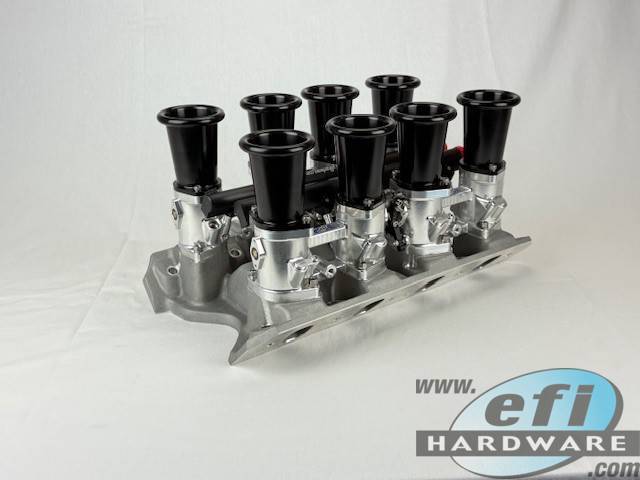

Pro-Series Ford 351 Cleveland V8 Stack Injection Kit
Product Code: 800-982CLEV351
inc GST for Australian CustomersAUD $6,500.00 (ex GST)
for International Customers
GBP3,893.67
EUR7,179.50
NZD637,905.46
JPY4,058.57
USD
Options:
This V8 Stack Injection kit is now available for the Ford 351 Cleveland motors with 2V or 3V heads. Kit includes manifold, studs and nuts, assembled throttle bodies, linkages, ram tubes and fuel rails.
HP RATING:
We rate our 50mm V8 Stack at 580HP - 600HP.
This, of course, does not mean that your engine will make that much power, but so long as the rest of the engine and tuning is up to it, this kit can support up to between 580HP and 600HP.
BOOSTED VS NATURALLY ASPIRATED:
We have lip seals behind the throttle shaft bearings to stop grease from being sucked out of the bearings under high intake runner vacuum. These are turned around on boosted applications so there is no boost leakage and also stops the bearing grease getting evacuated from the throttle shaft the bearings.
We ask you if you are going to run your engine Boosted, or Naturally Aspirated so we can install the Lip Seals in your throttle bodies in the appropriate way to suit your application.
FULLY ASSEMBLED VS SUB ASSEMBLED KIT:
We want to supply your Throttle Body Kit just the way you want it.
That's why we offer both Sub Assembled Kits, and Full Assembled Kits.
FULLY ASSEMBLED KIT:
By choosing the Fully Assembled Option above, you will receive:
- Each of your Throttle Bodies is precision factory assembled
- Throttle Shafts cut to correct lengths to suit your manifold
- Linkages are fitted and adjusted to ensure correct and smooth operation
Note: Although we will supply a great linkage fitment, final linkage adjustment
can only be carried out once the engine is running
- TPS "D" drive on the end of the shaft you stipulate so it's in the best position on your engine
- We may contact you with a few questions to ensure we supply the kit assembled to best
suit your application
SUB ASSEMBLED KIT:
By choosing the Fully Assembled Option above, you will receive:
- Each of your Throttle Bodies is precision factory assembled
- Throttle Shafts are left long so you can trim them to suit your engine and manifold
- Linkages are supplied for you to fit and adjust once you have trimmed your Throttle Shafts
The EFI Hardware V8 Stack Injection Kit for the Ford 351 Cleveland engine uses our high performance IDA Throttle Bodies to achieve maximum performance and reliability to ensure you get the maximum power from your engine, plus the peace of mind that premium quality components gives you.
Internal Fuel rails in our Cleveland V8 Stack Injection Kits ensure that each injection pulse is delivered into the airstream at the best possible angle. This provides minimum intake runner wall wetting and keeps the maximum amount of fuel suspended in the air stream. By keeping more fuel in the airstream, we are able to have a far more consistent air fuel ratio than injection systems where the fuel is squirted across the intake runner where more fuel hits the other side of the runner, and runs down the runner into the cylinder.
LINKAGE AND RAM TUBE COLOURS:
Due to overwhelming demand from our customers, we are transitioning our standard colour from Blue to Black. Black is a classic colour, and goes with pretty much every engine bay colour and style.
This includes Ram Tubes, Linkages, Cable Pulleys, Drop Links, Bell Cranks, and more.
Don't worry if you love blue, you can still get your kit in blue. There will be a small premium of $40 per kit to cover us sending out your kit of parts to be anodized blue. If you would like blue anodizing, please let us know by typing in the notes area of your order.
ACCESSORIES:
PART NUMBER | DESCRIPTION | IMAGE |
H-MAPCOL8 | 8 Cylinder MAP Sensor Collector If you are after great drivability with |
QUALITY ASSURANCE:
Every single throttle bore and throttle plate are measured and matched as a pair to ensure the most perfect throttle fit and consistency across every EFI Hardware throttle body.
THROTTLE BODY TECHNICAL DRAWING
HIGH PERFORMANCE FUEL SYSTEM PLUMBING TECHNICAL DIAGRAM
Setting up your fuel system right the first time is easy if you follow the right instructions.
This V8 Stack Injection Kit can be fully assembled prior to shipment the cost is an additional $270.00.
The kit does not include TPS, Injectors, mesh ram tube covers or air filters.
Other upgrade options include Pro Race throttle bodies in place of Pro Street $300.00.
Special pricing on injectors and TPS Kit when buying a complete Kit.
Mesh covers option add $264.00
We now recommend
and use SKF bearings.
