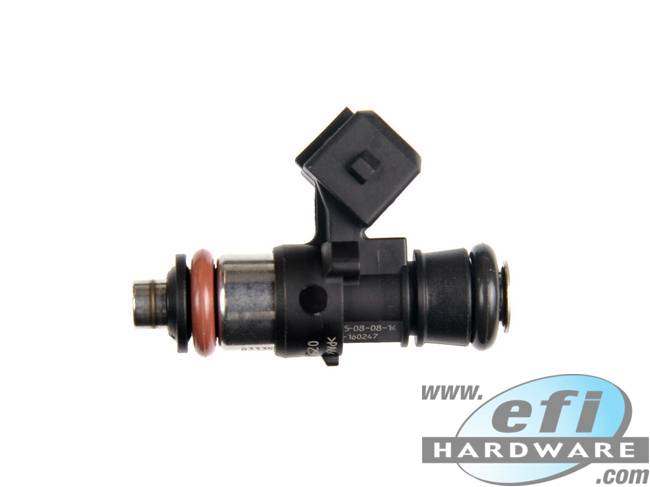

Genuine Bosch 1650cc Fuel Injector - unmodified -0280158333 - 0280158334
In Stock
Product Code: 851-1650-NM
$187.00
inc GST for Australian CustomersAUD $170.00 (ex GST)
for International Customers
inc GST for Australian CustomersAUD $170.00 (ex GST)
for International Customers
84.56
GBP101.89
EUR187.88
NZD16,624.94
JPY106.27
USD
GBP101.89
EUR187.88
NZD16,624.94
JPY106.27
USD
approximate only
Options:
Bosch Number 0280158333
Half Height Injector. You can use adapters with either 11mm or 14mm top orings to suit your fuel rail.
THIS INJECTOR IS E85 COMPATIBLE.
267 HP Normally Aspirated (0.5 B.S.F.C & 85% Duty Cycle 3.0 Bar Fuel Pressure) - estimated (pump petrol)
222 HP Turbo (0.6 B.S.F.C & 85% Duty Cycle 3.0 Bar Fuel Pressure) up to 1 Bar Boost - estimated (pump petrol)
205 HP Turbo (0.65 B.S.F.C & 85% Duty Cycle 3.0 Bar Fuel Presure) up to 2 Bar Boost - estimated (pump petrol)
> Flow Rate - 1650cc/min (157Lb/Hr) @ 4.0Bar
- 1462cc/min @3.0 Bar
> ORings - 14mm Top / 14mm Bottom
> Electrical Plug - Bosch (Square)
> Impedance - 8.4 Ohms
> Spray Pattern - Narrow
> Oring Top to Bottom / Center to Center without Height Adapter - 38.0mm
> Oring Top to Bottom / Center to Center with 11mm Top Oring Height Adapter - 64.5mm
> Oring Top to Bottom / Center to Center with 14mm Top Oring Height Adapter - 64.5mm
> Manufacture - Bosch - Part Number 0 280 158 333
Details
It is recommended that all sets of injectors are flow matched. From our experience there can be up to 8% flow differential if injectors are randomly chosen.
We aim for under 1% for all of our flow matched sets.

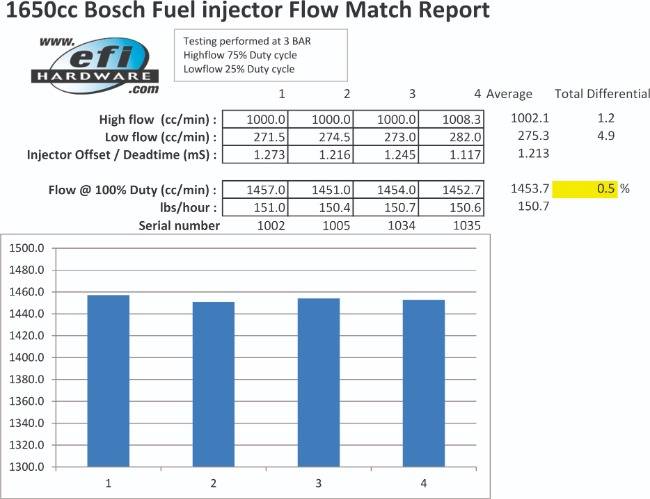

This is an example of what you will receive with each set of flow matched Bosch injectors.
INJECTOR CONNECTORS TO SUIT:
Replacement injectors are only as good as the wiring, pins and plugs that supply current
and voltage to them.
This is an ideal time to check your injector plugs and pins for signs of pin corrosion, pins
splayed open and crumbling plastic connectors.
If in doubt, it can be cheap insurance to replace your injector connectors with brand new items to ensure positive electrical connections.
| PART NUMBER | DESCRIPTION | IMAGE |
| C02F-0003 | Injector plug with Golt Tipped Tyco Terminals & 90° Boot |  |
| C02F-0002 | Injector plug with high quality boot |  |
| 852-LOOM2 | Bosch Injector To USCAR Loom Adapter |  |
| 852-LOOM4 | Bosch Injector To Nissan Loom Adapter |  |
| 852-LOOM6 | Bosch Injector To USCAR Loom Adapter - Hard |  |
| 852-LOOM8 | Bosch Injector To Denso Loom Adapter |  |
