High Output Coil with Inbuilt Igniter IGN-1A
In Stock
Product Code: H-COIL-MERCURY
$121.00$99.00
inc GST for Australian Customers$110.00AUD $90.00 (ex GST)
for International Customers
inc GST for Australian Customers$110.00AUD $90.00 (ex GST)
for International Customers
56.91
46.56GBP
68.23
55.83EUR
122.52
100.25NZD
11,070.91
9,058.01JPY
71.55
58.54USD
approximate only
Massive 103mJ (+/- 7%) @8Amps
Great alternative when a CDI ignition is normally required.
This coil is only suitable for multi-coil applications. It is not suitable for single coil applications.
Details
This coil delivers similar performance to a CDI system without the need for the bulky and costly CDI control box.
The secret to this high level of performance is the use of a High-Output Insulated Gate Bipolar Transistor (IGBT).
even better than CDI?
CDI systems have a huge power output, but they have one failing, which is their very short spark duration. This can lead to engine misfires, even under low load conditions.
The H-COIL-MERCURY coils have a very long spark duration, around 2.9mS vs
ASSOCIATED PARTS:
| PART NUMBER | DESCRIPTION | IMAGE |

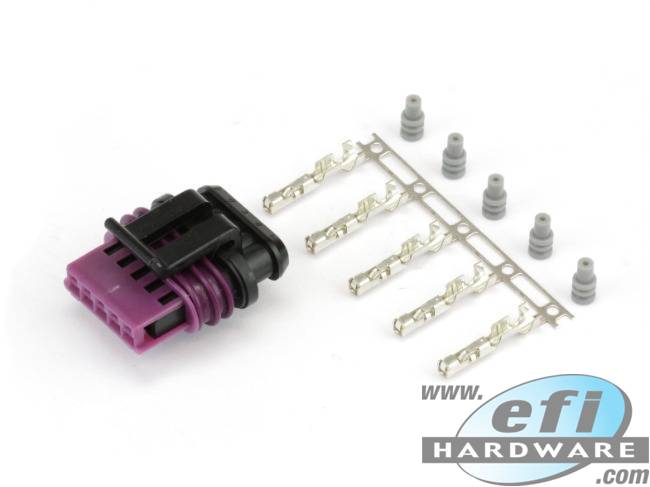

| C-05FR3-9GM | Pull-To-Seat connector to suit this Ignition Coil |  |
| C-05FR3-9GMX | Push-To-Seat Connector to suit this Ignition Coil |  |
| Wiring Diagram | Wiring Diagram |  |
