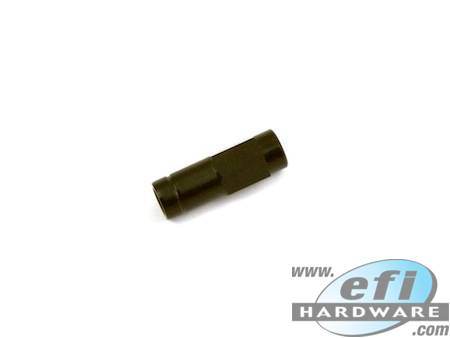

drop link rod only

Details: You want your engine to run and idle reliably and consistantley.  Achieving a quick and accurate setup is one of the keys to getting this result.   EFI Hardware Drop Links are designed to be used with high grade rod ends with the spherical bearing hole designed to receive an M5 fastener.  One end of the rod has a right-hand M5 thread, and the other end has an M5 left-hand thread allowing you to easily make very small adjustments to the Drop Link length, while the Drop Link is installed on your engine.

Colour Finish: All of our linkage components are available in Blue, Black and Natural colour.

Dimensions:

815-060 Rod (25mm) Working Length Center to Center adjustable 60mm to 80mm

815-061 Rod (50mm) Working Length Center to Center adjustable 79mm to 105mm

815-062 Rod (65mm) Working Length Center to Center adjustable 94mm to 120mm

815-063 Rod (75mm) Working Length Center to Center adjustable 107mm to 130mm

815-064 Rod (90mm) Working Length Center to Center adjustable 125mm to 145mm

815-065* Rod (200mm) Working Length Center to Center adjustable down from 255mm

*Supplied with Left-Hand M5 Thread in one end of rod. You only need to cut the other end to your required length, then dill and tap it with a regular Right-Hand M5 Thread tap.

RELATED PARTS:

PART NUMBER	DESCRIPTION	IMAGE
815-076	Rod End - right hand thread
815-077	Rod End - left hand thread
